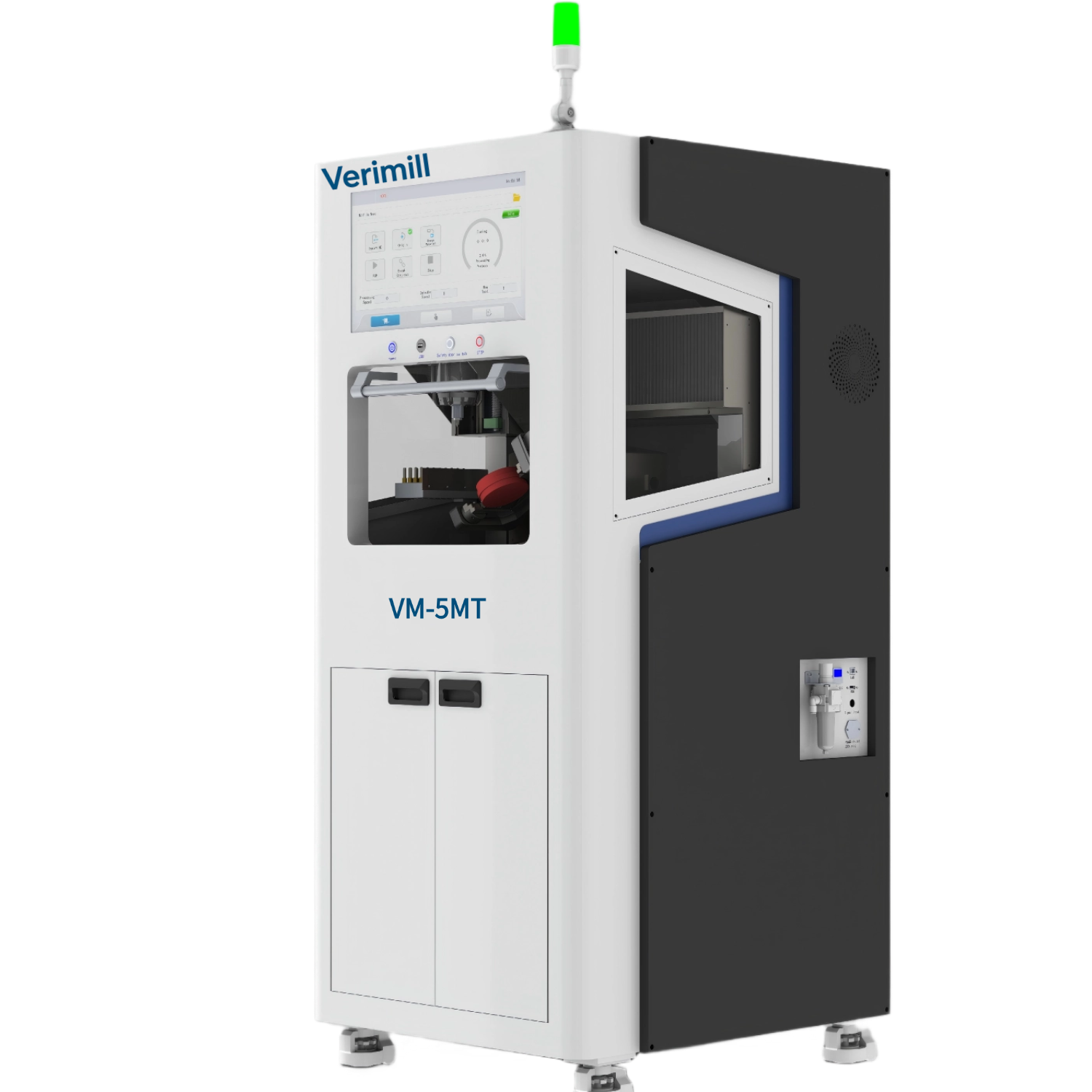

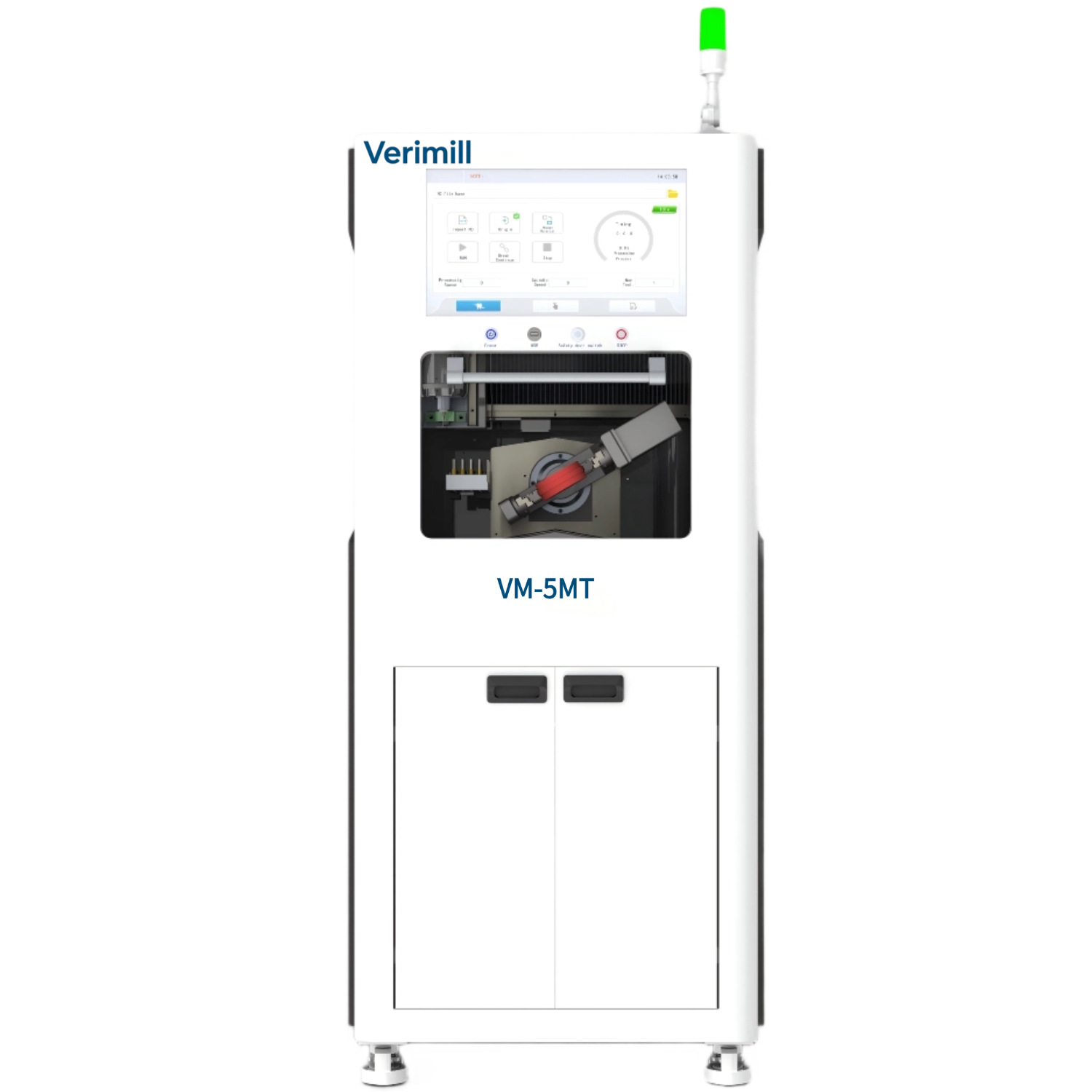

VM5MT 5-Axis Dental Metal Milling Machine with 4KW High-Power Spindle for Titanium Disc Cobalt-Chrome Complex Malone Bridge Fabrication

The Verimill VM5MT is an industrial-grade powerhouse engineered for the high-intensity processing of dental metallic materials, including titanium and cobalt-chrome. Built on a massive 650kg heavy-duty chassis to eliminate vibration, this 5-axis linkage system is driven by a high-torque 4KW spindle capable of reaching 40,000 RPM. It represents the ultimate investment in productivity and long-term industrial reliability for modern dental manufacturing centers.
Download
View all downloads
  • VM5MT 5-Axis Dental Metal Milling Machine with 4KW High-Power Spindle for Titanium Disc Cobalt-Chrome Complex Malone Bridge Fabrication,Verimill,VM5MT 5-Axis Dental Metal Milling Machine with 4KW High-Power Spindle for Titanium Disc Cobalt-Chrome Complex Malone Bridge Fabrication
  • VM5MT 5-Axis Dental Metal Milling Machine with 4KW High-Power Spindle for Titanium Disc Cobalt-Chrome Complex Malone Bridge Fabrication,Verimill,VM5MT 5-Axis Dental Metal Milling Machine with 4KW High-Power Spindle for Titanium Disc Cobalt-Chrome Complex Malone Bridge Fabrication
  • Description

  • Technical Parameters

✅ Industrial 4KW High-Torque Spindle:
Delivers superior force and rigidity for the continuous milling of hard metals like Titanium and CoCr, ensuring clean margins and high-gloss surface finishes.
✅ Massive 32-Position Tool Magazine:
The largest-in-class tool library allows for extensive automated workflows, keeping all necessary tools ready for complex, multi-indication milling without manual intervention.
✅ Heavy-Duty 550kg Stability:
The ultra-heavy integrated chassis provides the necessary inertia to dampen vibrations during metal processing, maintaining a consistent 0.003mm repeatability accuracy.
✅ Versatile Multi-Holder System:
Uniquely capable of clamping 98mm discs, square titanium blocks (140*150mm), and customized titanium columns, offering the widest indication range in the industry.
✅ Advanced 15.6-Inch Command Center:
A massive high-definition touchscreen interface featuring interruption resumption, tool life monitoring, and 3-color status lighting for intuitive operation and management.

Milling Machine Model VM5MT Dental Metal Milling Machine
Axis Configuration 5-axis Linkage
Milling Mode Metal Milling Machine (Water Cooling)
Repeatability Positioning Accuracy 3μm
Machining Precision 3μm
Max Spindle Speed 40,000 RPM
Spindle Power 4KW High-performance Spindle
Calibration Method One-button Automatic Calibration
Tool Magazine Capacity 32 Pieces (Automatic Change)
Rotation Range A-axis: ±360°
B-axis: ±35°
Material Compatibility

Titanium (Disc/Column)
CoCr
H/C
PMMA
PEEK
Resin
Wax
Replacement wood
Test Alum. Column

Indications

Implant Abutment
Crown bridge
Malone bridge
Inlay,Onlay
Customized abutment
Abutment crown
RDP framework
BPS
Bar clasp

Material Holder Square (140*150mm)
Disc (98mm)
Titanium Columns
Motor Type High-Precision Servo Motor
Dimensions (L*W*H) 740mm*860mm*1760mm
Net Weight 550kg
Power Supply AC 220V,3.6KW
