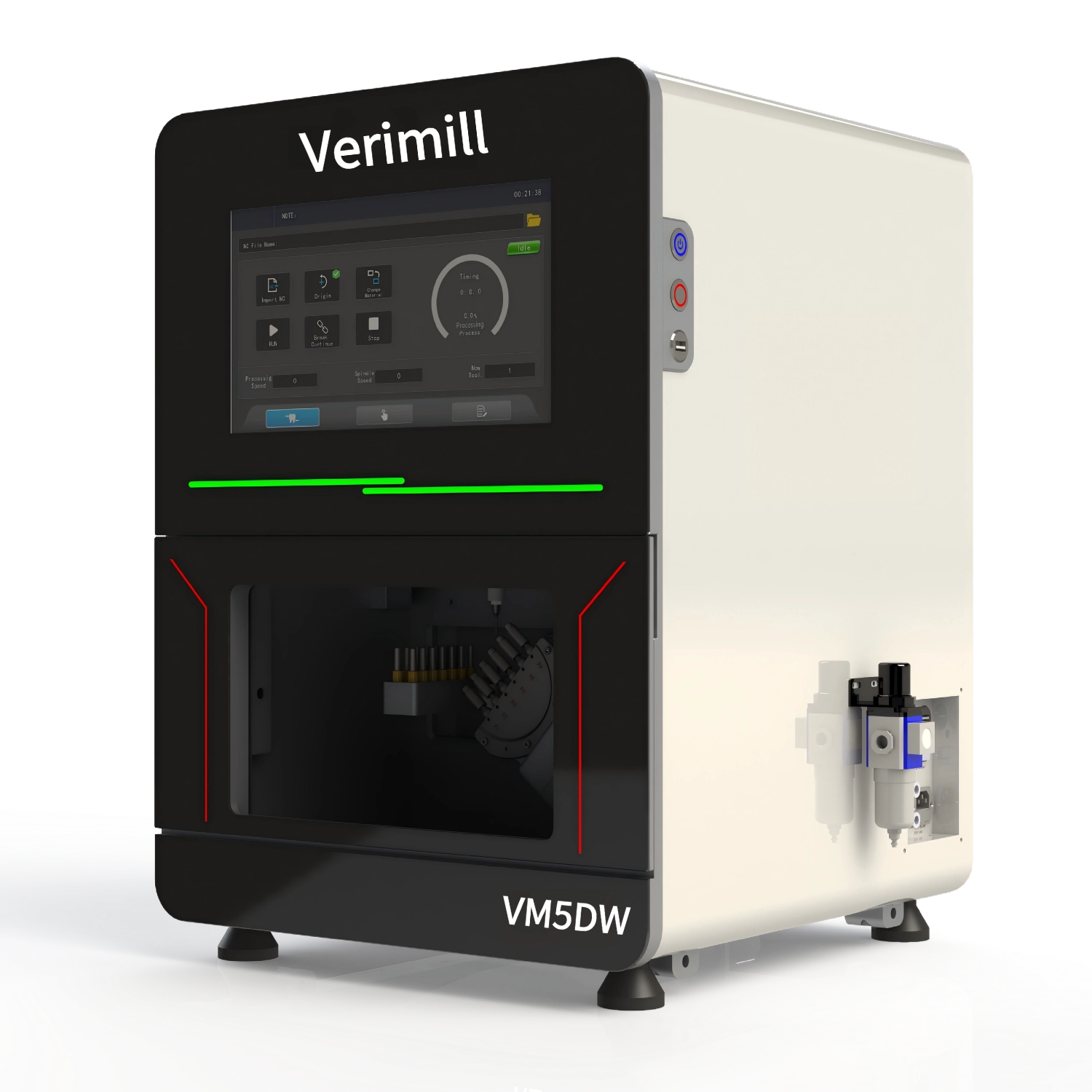

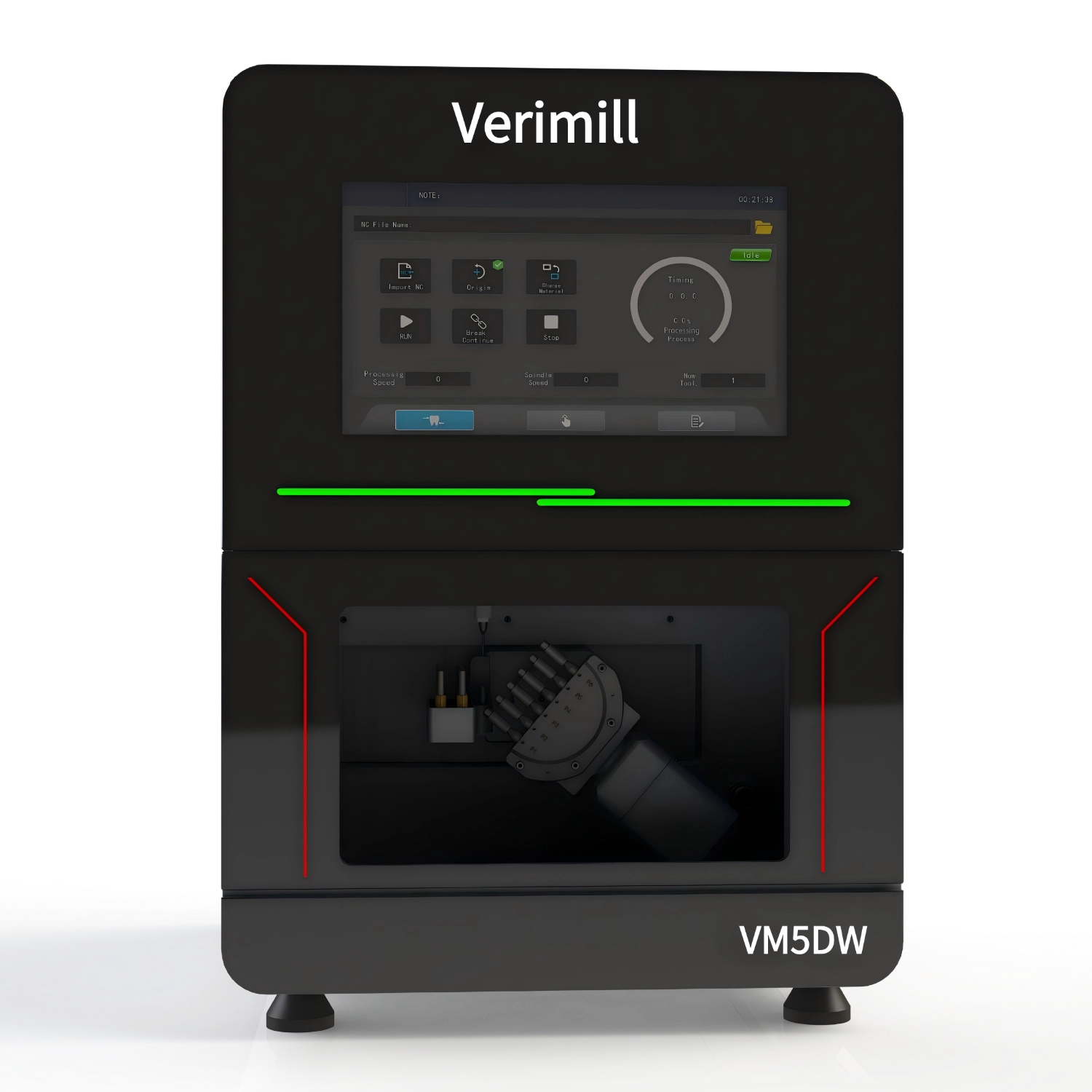

All-in-One CAD/CAM Solution VM5DW 5-Axis Linkage Dry&Wet Dual-Use Dental Milling Machine

The Verimill VM5DW is the ultimate all-in-one 5-axis linkage dental milling solution, seamlessly integrating high-efficiency dry milling with high-torque wet milling capabilities. Engineered with a powerhouse 2.5KW industrial spindle, the VM5DW is uniquely capable of processing the widest range of dental materials, from Zirconia and Wax to hard Glass Ceramics and even robust Titanium Discs. Its sophisticated dual-mode system, combined with 5µm repeatability accuracy.
Download
View all downloads
  • All-in-One CAD/CAM Solution VM5DW 5-Axis Linkage Dry&Wet Dual-Use Dental Milling Machine,Verimill,All-in-One CAD/CAM Solution 5-Axis Linkage Dry&Wet Dental Milling Machine
  • VM5DW 5-Axis Linkage Dry&Wet Dual-Use Dental Milling Machine for Titanium Disc Glass Ceramics and Zirconia All-in-One CAD/CAM Solution,Verimill,VM5DW 5-Axis Linkage Dry&Wet Dual-Use Dental Milling Machine for Titanium Disc Glass Ceramics and Zirconia All-in-One CAD/CAM Solution

Material Compatibility

allowing for the high-speed processing of the widest range of dental materials including Zirconia, Titanium, PEEK, and Resin.
ABOUT VM5DW

The Ultimate Pinnacle of Hybrid Dental Milling

The Ultimate Pinnacle of Hybrid Dental Milling
The Verimill VM5DW is an elite 5-axis hybrid system fusing industrial power with 5μm precision. Featuring a 2.2KW spindle, 15.6 inch smart interface,it optimizes 24/7 workflows for Zirconia, Ceramics, and Titanium, delivering the ultimate lab productivity.
5μm
Positioning Accuracy
2.2KW
Spindle Power
24/7
Constant Operation
6-Unit
Batch Capacity
  • Description

  • Technical Parameters

✅ Seamless Dry & Wet Dual-Mode:
A versatile hybrid system that effortlessly switches between dry milling for Zirconia/PEEK and wet milling for Glass Ceramics/Titanium, maximizing laboratory ROI.

✅ Powerful 2.2KW High-Torque Spindle:
Features a heavy-duty 60,000 RPM spindle designed to handle the rigorous demands of metal milling (Titanium Discs) while maintaining exceptional speed for softer materials.

✅ Full Material Compatibility:
The most comprehensive solution on the market, supporting Zirconia, Glass Ceramic Blocks, Pre-milled Titanium Columns, Titanium Discs, Resin, PEEK, and Wax.

✅ Micron-Level 5µm Repeatability:
Engineered with high-precision servo motors to achieve a repeatability positioning accuracy of 0.005mm, ensuring a perfect passive fit for even the most complex implant cases.

✅ Industrial-Grade 24/7 Reliability:
Built with an integrated high-rigidity chassis and sophisticated multi-sensor monitoring to ensure low vibration and stable performance during around-the-clock manufacturing.

Milling Machine Model VM5DW
Axis Configuration 5-axis Linkage
Milling Mode Dry & Wet Dual-purpose (Water Cooling)
Repeatability Positioning Accuracy 3μm
Machining Precision < 1μm
Spindle Type High-performance Spindle
Max Spindle Speed 60,000 RPM
Spindle Power 2.2KW
Tool Magazine Capacity 12 Pieces (Automatic Change)
Travel Range (X/Y/Z) X:165mm  Y:108mm  Z:93mm
Rotation Range A-axis: ±360°
B-axis: -28° ~ +92°
Material Compatibility Zirconia
Glass Ceramic Block
Pre-milled Titanium Column
Titanium Disc
Resin
PMMA

PEEK
Wax
Indication All on X
Crown&Bridge
Partial&Denture
Abutment
Splint
Inlay&Onlay
Veneer
Post&Core
Material Holder C-Shaped Holder (98mm diameter)
3 Glass Ceramic Blocks
3 Pre-milled Titanium Columns
Control Screen 15.6-inch Integrated Tempered Glass Touch Screen
Motor Type High-Precision Servo Motor
Dimensions (L*W*H) 560mm*520mm*720mm
Net Weight 125kg

Packing List
