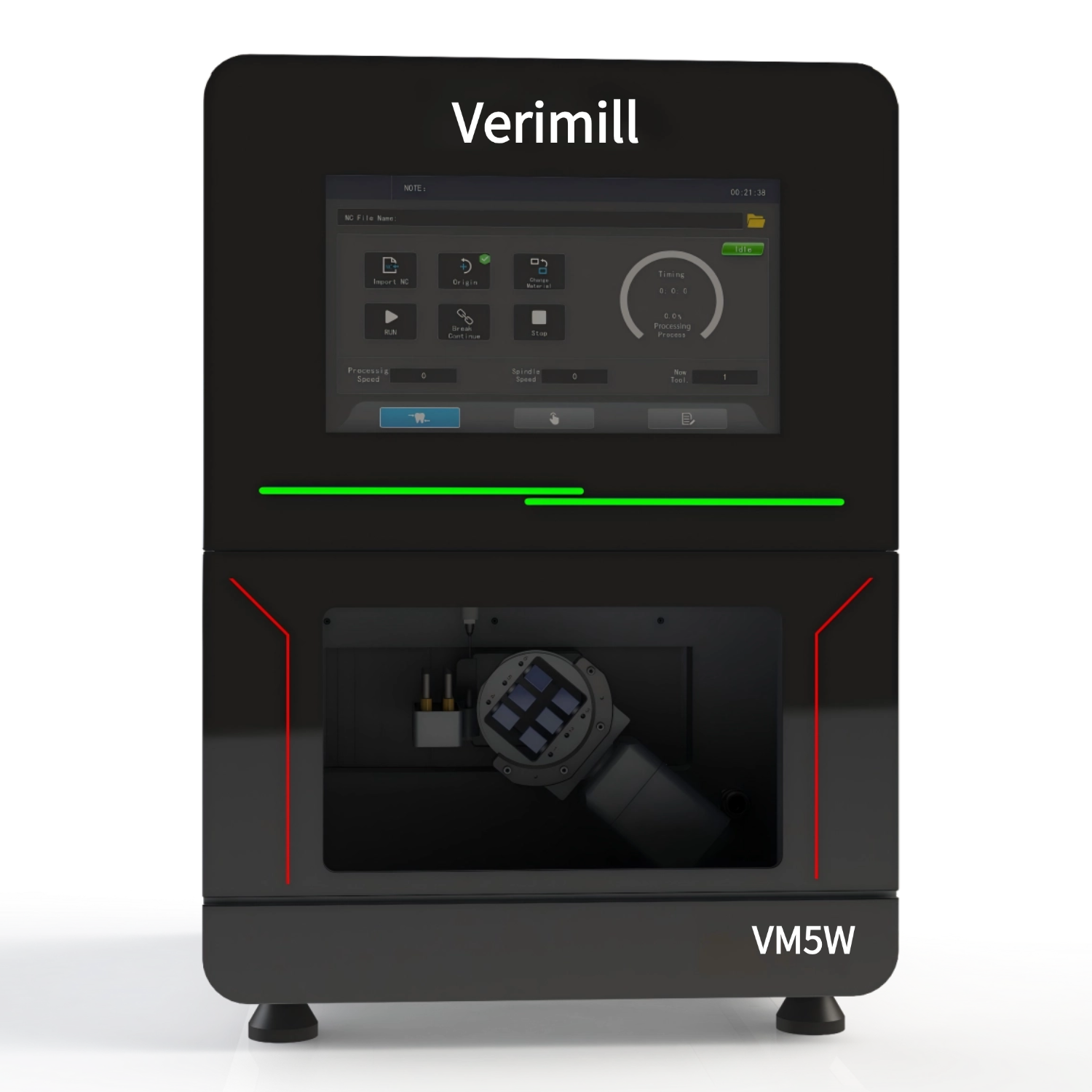

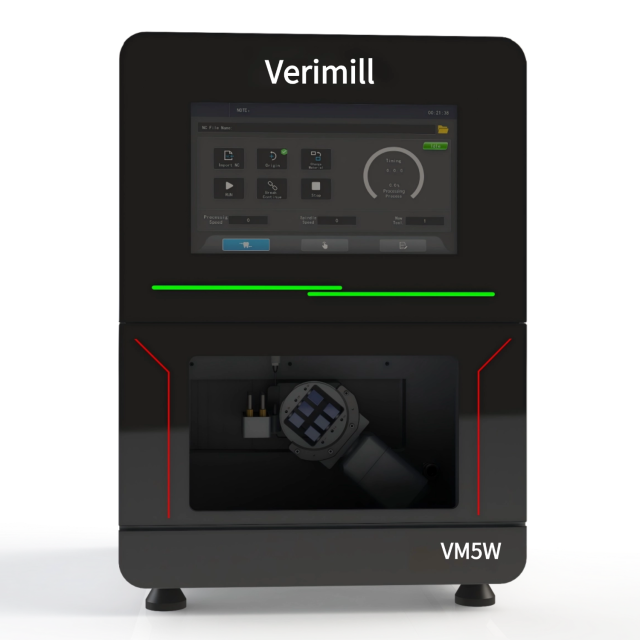

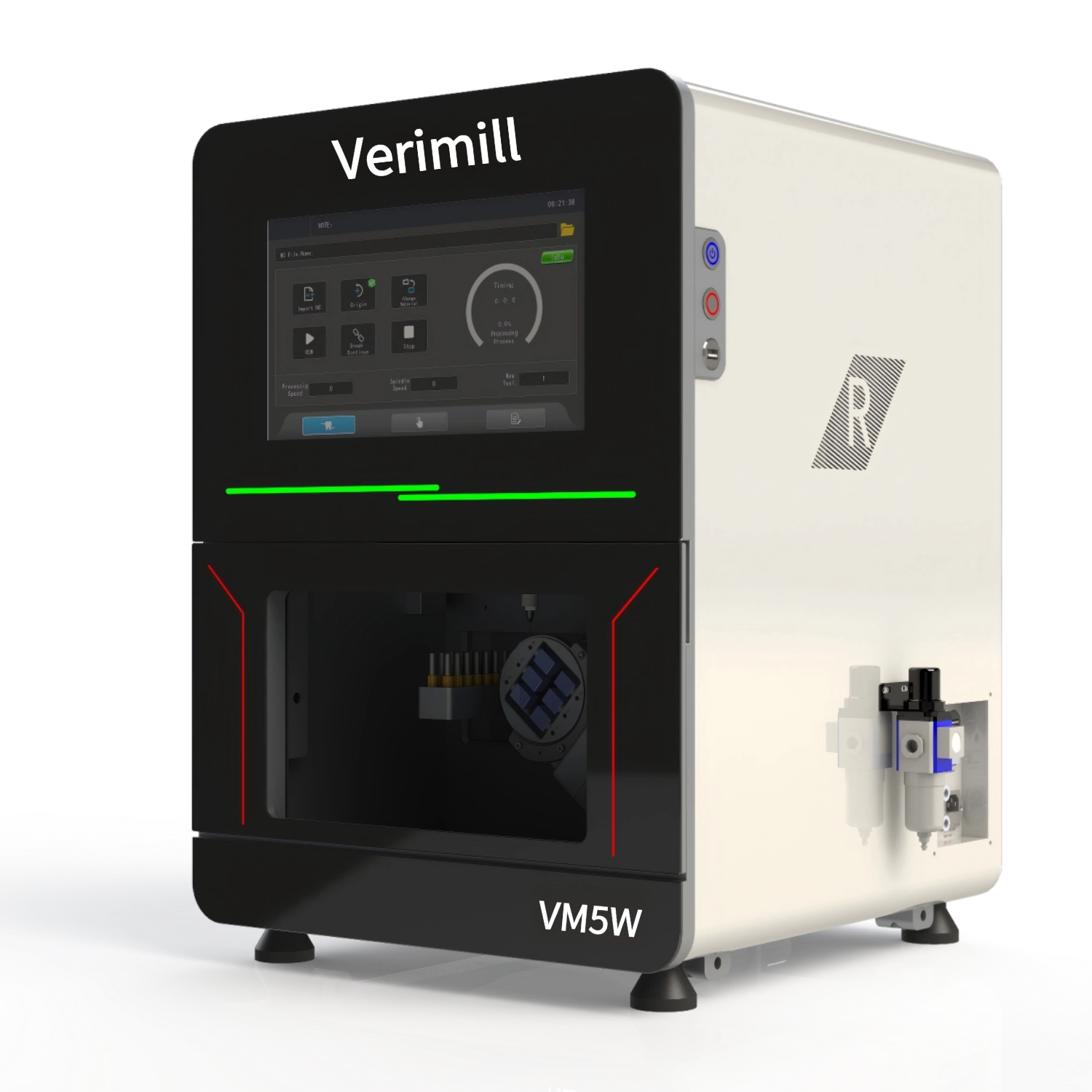

VM5W 5-Axis Dental Wet Milling Machine for Glass Ceramic Blocks and Pre-Milled Titanium Columns

The Verimill VM5W is a high-performance 5-axis linkage wet milling machine specifically engineered for the high-precision processing of glass ceramics, pre-milled titanium columns, and high-strength resins. Powered by a robust 1.8KW industrial spindle and driven by precision servo motors.Designed for the modern dental laboratory, the VM5W combines sophisticated water-cooling technology with an intuitive 15.6-inch tempered glass interface to deliver maximum versatility and cost-effectiveness.
Download
View all downloads
  • VM5W 5-Axis Dental Wet Milling Machine for Glass Ceramic Blocks and Pre-Milled Titanium Columns,Verimill,VM5W 5-Axis Dental Wet Milling Machine for Glass Ceramic Blocks and Pre-Milled Titanium Columns
  • VM5W 5-Axis Dental Wet Milling Machine for Glass Ceramic Blocks and Pre-Milled Titanium Columns,Verimill,VM5W 5-Axis Dental Wet Milling Machine for Glass Ceramic Blocks and Pre-Milled Titanium Columns
  • Description

  • Technical Parameters

✅ Specialized Wet Milling Capability:
Optimized for high-hardness materials, including glass ceramic blocks and pre-milled titanium columns, providing a comprehensive solution for chairside and lab restorations.

✅ Exceptional 3μm Repeatability:
Delivers micron-level precision with a repeatability positioning accuracy of 3μm, guaranteeing the highest standards of fitting for custom abutments and crowns.

✅ High-Power 1.8KW Industrial Spindle:
Equipped with a powerful 60,000 RPM spindle that provides superior torque for efficient metal and ceramic processing while maintaining operational stability.

✅ Flexible Multi-Functional Holder:
Features a high-precision holder that can simultaneously accommodate three glass ceramic blocks or three pre-milled titanium columns, significantly increasing workflow efficiency.

✅ Heavy-Duty Integrated Design:
The sophisticated industrial-grade chassis ensures maximum rigidity and low vibration, supporting 24/7 continuous operation without compromising the 0.01mm assembly precision.

Milling Machine Model VM5W
Axis Configuration 5-axis Linkage
Milling Mode Wet Milling
Repeatability Positioning Accuracy 3μm
Machining Precision < 0.01mm
Spindle Type High-performance Spindle
Max Spindle Speed 60,000 RPM
Spindle Power 1.8KW
Tool Magazine Capacity 12 Pieces (Automatic Change)
Travel Range (X/Y/Z) X:165mm  Y:108mm  Z:93mm
Rotation Range A-axis: ±360°
B-axis: -28° ~ +92°
Material Compatibility Glass Ceramic Blocks
Pre-milled Titanium Columns
PMMA
Resin

PEEK
Wax
Material Holder C-Shaped Holder (98mm diameter)
3 Glass Ceramic Blocks
3 Pre-milled Titanium Columns
Motor Type High-Precision Servo Motor
Dimensions (L*W*H) 560mm*520mm*720mm
Net Weight 120kg
Power Supply AC 220V,3.6KW
