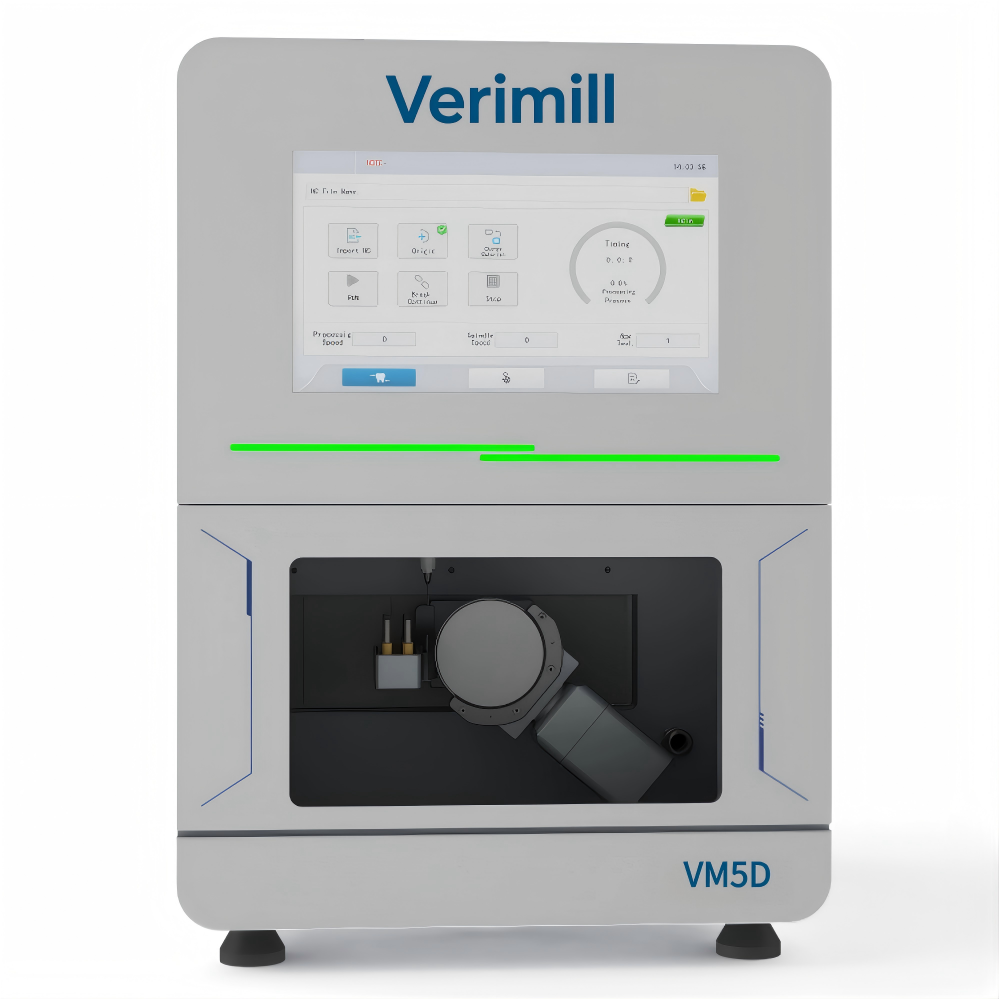

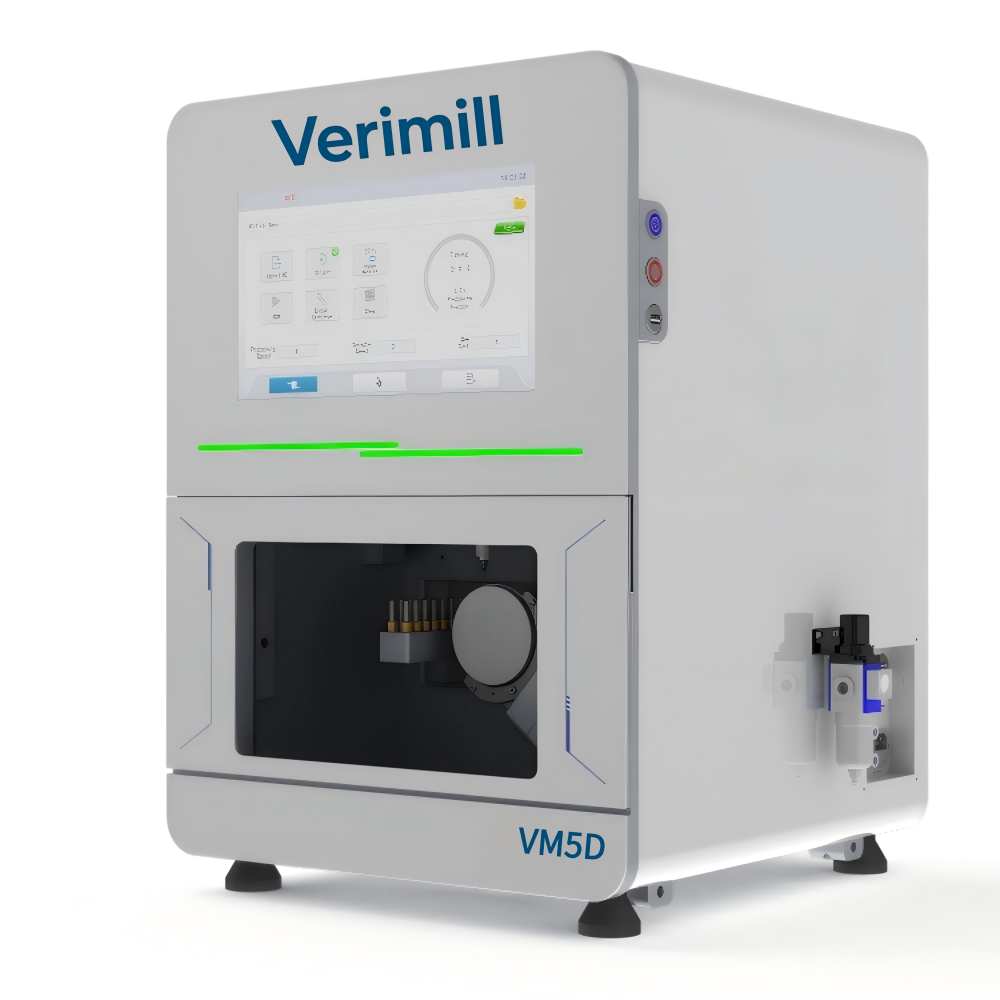

VM5D 5-axis Linkage Dental Dry Milling Machine Zirconia Milling Master

The VM5D is a high-performance 5-axis linkage dry milling machine specifically engineered for modern dental laboratories seeking a balance between exceptional precision and high cost-effectiveness. Equipped with a high-speed 60,000 RPM spindle and an advanced servo-motor-driven system, this compact unit delivers micron-level accuracy with a 5µm repeatability.
GET A QUOTE
Download
View all downloads
  • VM5D 5-axis Linkage Dental Dry Milling Machine Zirconia Milling Master,Verimill,VM5D 5-axis Linkage Dental Dry Milling Machine Zirconia Milling Master
  • VM5D 5-axis Linkage Dental Dry Milling Machine Zirconia Milling Master,Verimill,VM5D 5-axis Linkage Dental Dry Milling Machine Zirconia Milling Master

Material Compatibility

allowing for the high-speed processing of the widest range of dental materials including Zirconia,PMMA, PEEK, and Resin.

Zirconia

PMMA

PEEK

Wax
ABOUT VM5D

The 5-Axis Zirconia Milling Master

The 5-Axis Zirconia Milling Master
The Verimill VM5D is an elite 5-axis hybrid system fusing industrial power with 3μm precision. Featuring a 2.5KW spindle, 21.5smart interface, and one-button auto-calibration, it optimizes 24/7 workflows for Zirconia, Ceramics, and Titanium, delivering the ultimate lab productivity.
5μm
Positioning Accuracy
0.75KW
Spindle Power
24/7
Constant Operation
6-Unit
Batch Capacity
GET A QUOTE

Highlights
Precision Milling/Maximum Efficiency/Smarter Dental Workflow
Easy deep cutting 90 Degree Milling

Easy deep cutting 90 Degree Milling

 Enables precise detail milling in interproximal areas,labial textures,and gingiva lines. Eliminates manual handpiece trimming, significantly improving workflow efficiency
Saving is Earning

Saving is Earning

 Featuring an open design,the holder enables the nesting of 5 or more crowns along the material periphery,maximizing the utilization of every square inch for optimal material yield
Option for Air Compressor Free

Option for Air Compressor Free

 The innovative electrically controlled spindle collet simplifies operation with tool-free changeovers and removes the dependency on an air compressor.This results in a quieter, lower-maintenance system that enhances overall usability and comfort

Packing List

  • Description

  • Technical Parameters

✅ Micron-Level Precision:
Achieves 5µm(0.005mm) accuracy repeatability and an assembly precision within 0.01mm for every axis, ensuring perfect fit for all dental restorations.

✅ High-Speed & Stable Performance:
Features a powerful 0.75KW spindle reaching up to 60,000 RPM, supported by imported core components for long-lasting and stable operation.

✅ Optimized Material Utilization:
The highly accurate C-shaped holder supports 98mm discs and is designed to extract at least 20% extra crowns from each zirconia blank.

✅ Advanced 5-Axis Linkage:
Offers a wide rotation range (B-axis from -30°to +92°) to meet complex customized milling needs and undercut processing without difficulty.

✅ Intelligent User Interface:
Equipped with a 15.6-inch high-definition touch display and smart sensors for tool setting alarms, overtravel protection, and maintenance reminders.

Milling Machine Model VM5D
Axis Configuration 5-axis Linkage
Milling Mode Dry Millimg Machine
Machining Precision < 0.01mm
Max Spindle Speed 60,000 RPM
Spindle Power 0.75KW
Calibration Method One-button Automatic Calibration
Tool Magazine Capacity 6 Pieces
Travel Range (X/Y/Z) X:165mm  Y:108mm  Z:93mm
Rotation Range A-axis: ±360°
B-axis: -28° ~ +92°
Material Compatibility

Zirconia
PMMA
PEEK
Wax
Indication

All on X
Crown&Bridge
Coping
Inlay&Onlay
Veneer
Post&Core
Material Holder C-Shaped Holder (98mm diameter)
Motor Type High-Precision Servo Motor
Dimensions (L*W*H) 560mm*520mm*720mm
Net Weight 115kg
